Boss Cabins Hook Lift 25

WE’VE RAISED THE BAR WITH OUR FLEXIBLE HOOK LIFT STATIC WELFARE RANGE

Build a bespoke cabin

Your Cabin, Your Way

Design and build your cabin online with
our configurator.

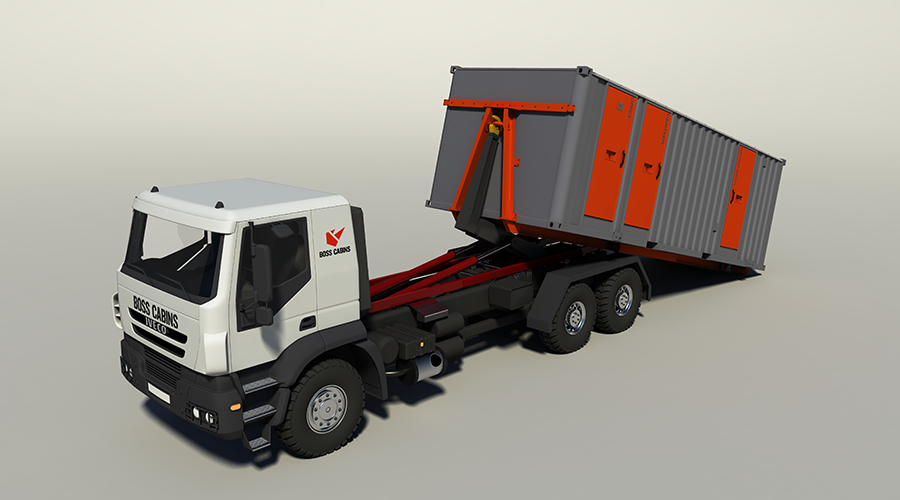

Our hook lift static cabins are engineered to be transported in three different ways – hook lift, fork lift and crane lift – making it the ultimate flexible solution for all worksites including the demolition industry which favours hook lift trucks for transport. You can even remove the hook lift element if not required for certain jobs.

Designed for comfort, function, strength and security, this cabin will deliver a great performance in almost any environment. The 25ft Canteen Office Dry welfare cabin provides accommodation for for up to eleven people in comfort. It has plenty of hanging space for garments in the dedicated changing room and the option of individual personal storage compartments.

Power is provided by the integrated silenced diesel generator which supplies various electrical systems to suit, including our Boss Cabins patent-pending Eco Ultimate specification with ultra-low fuel consumption and emissions. Solar hybrid options are available too.

Canteen

A comfortable space to rest, eat and work with table seating for up to eight people. Charge appliances from the battery with 12V USB charging points. 12V LED lighting, catering grade stainless steel worktops, microwave, kettle, instant hot wash facilities, towel and soap dispensers, window with security shutter.

Office

A separate dedicated office with desk space for three people, 12V USB charging sockets, 3-pin 230V sockets, three office chairs.

Changing / drying room

Coat hooks, bench seating with space beneath for footwear, fan heater. Optional wall-mounted open or lockable personal storage compartments.

Toilet

Separate toilet cubicle with recirculating chemical or fresh water micro flush toilet, forearm sinks with instant hot water, high-security skylights and PIR-sensor LED lighting.

Generator / drying room

Store coats or hang wet clothes to dry in the heated generator room. Generator, fuel tank access.

Finance Your Hook Lift 25
Get full quote
Download Brochures

Want more information?
Check out our latest brochure.

Download

Submit your details to download.


    How we handle your data

    Details which you provide here will not be shared with anyone outside of Boss Cabins and will be kept in a safe and secure location. You may request your personal data to be removed at any time.

    We may obtain data from carefully selected third parties, including our clients. For more information read our privacy policy.

    Do you need a bespoke layout?

    Talk to us about a custom design for your cabin.

    GET IN TOUCH

    Aftersales & Support

    We work harder after the sale because we understand that you need ongoing maintenance, accident and repairs, and parts when they get damaged.

    Annual Inspection

    When you buy a Boss Cabin, we'll come and service your cabin annually for your peace of mind.

    Accident & Repair Centre

    Fleet of cabins looking tired and need a refurb? Our accident and repair centre is here to help you get your fleet back on hire as quick as possible.

    Hook Lift 25 Features

    General
    • Meets all HSE on-site welfare standards
    • Can be lifted 3 ways – hook lift, fork lift, crane lift
    • Can separate hook lift section from main cabin structure if not required
    • Low-level lifting eyes avoid ‘Working at Height’ issues
    • Triangulated stainless steel chain guard protects cabin from damage from lifting chains/straps
    • Corner chain guides for safe lifting (statics only)
    • Forklift pockets
    • ISO Twist Lock castings for safe transport
    • Magnetic door stays
    • Anti-vandal doors with 3-bolt locking system and anti-prise strip
    • Keyholes positioned to prevent lock chiselling
    • High-security windows with locking steel shutters and toughened glass panes
    • ‘Chip Guard’ coating prior to painting
    • 2-pac paint finish in choice of RAL colours
    • Gold Standard Certification ensures all electrics comply with current legislation BS 7671 18th Edition
    • External socket so unit can be powered by external electricity supply
    • Energy efficient 12V LED lighting powered by battery
    • Brilliant white GRP walls with easy to maintain wipe-down finish.
    • Extremely hard wearing, easy to clean Polyflor vinyl floor covering
    Office
    • Desk Space for three people
    • Three office chairs supplied
    • Whiteboard with cork pinboard section
    • CO monitor alarm
    • 12V USB charging points
    • 230v 3-pin plug sockets
    • Wall-mounted fan heater
    Changing / drying room
    • Bench seating with space under to store footwear, bags etc.
    • Coat hooks
    • Wall-mounted fan heater
    Canteen
    • Comfortable canteen seating with tables and chairs for up to 8 people
    • High security impact-resistant skylights provide natural light
    • 12V USB charging points
    • 230v 3-pin plug sockets
    • Microwave
    • Kettle
    • Instant hot wash with stainless steel forearm sink
    • Soap and towel dispenser
    • Clean and waste water containers with 25ltr capacity
    • Drinking water container with 25ltr capacity
    • Drinking cup dispenser
    • Kitchen area with stainless steel worktops
    • Internal power isolator switch for ease of use and to prevent unplanned generator start, deep battery discharge and theft
    • Generator control panel inside cabin (not Eco Ultimate spec as generator is controlled automatically by ILMS)
    • Low level plinth heater
    • CO monitor alarm
    • Consumer unit with RCD and MCB protection
    • Whiteboard with cork pinboard section
    Toilet
    • Separate toilet cubicle with external door
    • Recirculating Chemical Toilet
    • Impact resistant polycarbonate fixed-pane skylights
    • Emergency external lock release mechanism
    • Instant hot water hand wash and forearm sink
    • Soap and hand towel dispenser
    • Wall mirror
    • 12v PIR-sensor controlled LED lighting
    • Self-closing door
    Generator / drying room
    • Generator room also can be used to dry clothing
    • Red Box generator with 1000 hour service intervals – 4 x longer than industry standard
    • Wall mounted fan heater
    • CO monitor alarm
    • Coat hooks
    • 12v PIR-sensor controlled LED lighting

    Tech Spec

    AttributeMeasurement
    Total Length7850mm (inc. hook lift)
    Cabin Length7620mm
    Cabin Width2750mm
    Total Height2740mm (inc. hook lift)
    Cabin Height2550mm
    Internal Height1990mm
    Internal Width2610mm
    Net Weight4950kg
    Fuel Tank58L
    Drinking Water20L
    Chemical Toilet Version
    Fresh Water25L (Canteen)
    Waste Water25L
    Fresh Water65L (Toilet)
    Toilet Waste225L
    Fresh Water Toilet Version
    Fresh Water140L
    Water/Toilet Waste150L

    Optional Upgrades and Features

    • Choice of Eco Plus, Eco Hybrid, Eco Ultimate or Solar Eco Hybrid electrical specifications.
    • Boss Shadow telemetry monitors cabin location, fuel level information and fault notification and diagnostics. Also theft alarm and remote shutdown of generator. Can include fresh water tank and waste tank level information also if fresh water toilets are installed.
    • Stainless steel build with 25 year warranty.
    • Fresh water micro-flush toilets.
    • Metal toilet pedal upgrade if fresh water toilet specified.
    • Waste Management Pro (WM Pro) rain water harvesting and grey water recycling system (fresh water)
    • 5 year warranty on generator engine and alternator with Eco Ultimate specification
      Red Box Infinity generator with 2000 hour service intervals – 8 x longer than industry standard.
    • 12V Webasto diesel heater. Comes as standard with Eco Hybrid or Eco Ultimate. Optional upgrade on Eco Plus. Runs without generator power.
    • Optional wall-mounted open or lockable personal storage compartments in Changing/Drying room
      Instant boiling hot water tap instead of kettle if Eco Ultimate electrical system if specified.
    • Contract a Boss Cabins Annual Safety Inspection – ensure your cabin remains safe and within the law.
    • Solar pack with roof mounted solar panel(s) to offer improved environmental performance and constant trickle charge to the batteries.
    • Boss Communication pack with wireless router.
    • Boss Entertainment pack including flat screen TV, Bluetooth wireless speakers.
    • Optional dispenser configuration – can include sanitiser, moisturiser etc.
    • Office and canteen can be equipped with 12v inverted 3-pin sockets power computers, printers etc. from battery (requires Eco Hybrid or Eco Ultimate electrical specification).

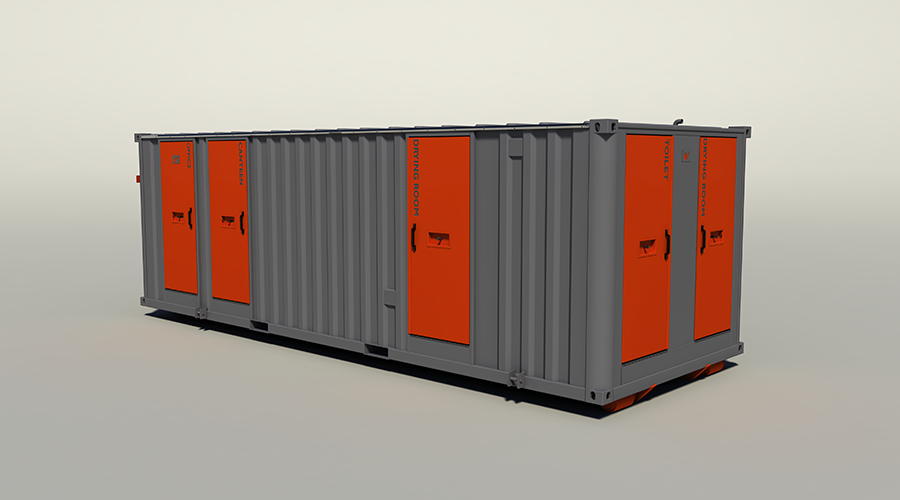

    Hook Lift 25 Gallery
