THE LATEST VERSION OF OUR LARGEST WELFARE CABIN WILL HAVE YOU HOOKED
Our hook lift static cabin is engineered to be transported in three different ways – hook lift, fork lift and crane lift – making it the ultimate flexible solution for all worksites including the demolition industry which favours hook lift trucks for transport. You can even remove the hook lift element if not required for certain jobs.
Caters for a variety of needs

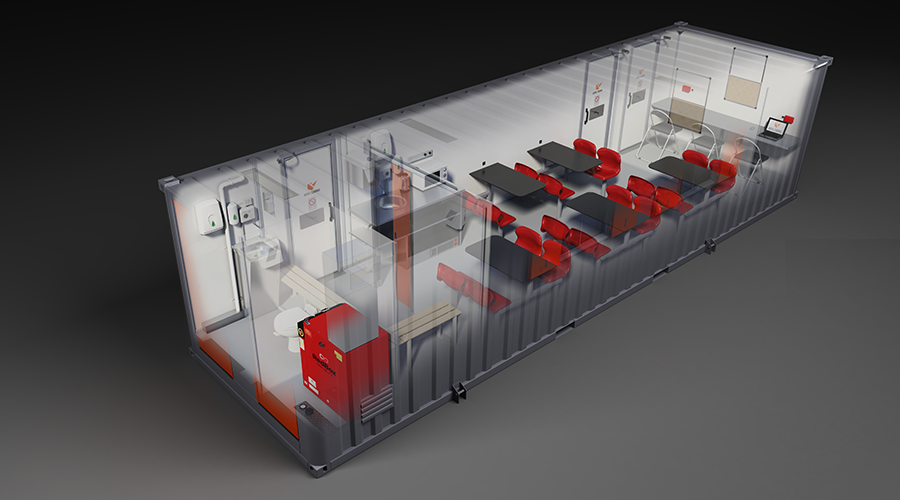

Designed for comfort, function, strength and security, this cabin will deliver a great performance in almost any environment. The 32ft Canteen Office Dry welfare cabin provides accommodation for for up to 21 people in comfort, with a design that covers all your on-site needs incorporating a large well-equipped Canteen, a quiet and functional dedicated office for up to 3 people, a separate drying/changing room and clean, bright toilet facilities.
Eco-friendly power options
Power is provided by an integrated silenced diesel generator which supplies various electrical systems to suit, including our Boss Cabins patent-pending Eco Ultimate specification with ultra-low fuel consumption and emissions. The generator in an Eco Ultimate cabin can be powered by bio fuel, a renewable green energy source which cuts harmful emissions by up to 90%. Solar hybrid options are available too.
Canteen
A comfortable space to rest, eat and work with table seating for up to 18 people. Charge appliances from the battery with 12V USB charging points. 12V LED lighting, catering grade stainless steel worktops, microwave, kettle, instant hot wash facilities, towel and soap dispensers, window with security shutter.
Office
A separate dedicated office with desk space for three people, 12V USB charging sockets, 3-pin 230V sockets, three office chairs.
Changing / drying room
Equipped with heating, bench seating and plenty of coat hooks, the dedicated Changing Room is perfect to take off your dirty wet work gear and leave it to dry. Space beneath benches to store footwear. Optional wall-mounted open or lockable personal storage compartments.
Toilet
Separate toilet cubicle with recirculating chemical or fresh water micro flush toilet, forearm sinks with instant hot water, high-security skylights and PIR-sensor LED lighting.
Generator / drying room
Generator and fuel tank located here. Additional space to store coats or hang wet clothes to dry using the fan heater supplied. PIR-sensor LED lighting.
*This is an indicative quote for illustration purposes only. Terms apply. Contact Boss Asset Finance for a full quotation.
Want more information?
Check out our latest brochure.
Download Brochures
Submit your details to download.
Aftersales & Support
We work harder after the sale because we understand that you need ongoing maintenance, accident and repairs, and parts when they get damaged.
Annual Inspection
When you buy a Boss Cabin, we'll come and service your cabin annually for your peace of mind.
Accident & Repair Centre
Fleet of cabins looking tired and need a refurb? Our accident and repair centre is here to help you get your fleet back on hire as quick as possible.
Hook Lift 32 Features
General
- Meets all HSE on-site welfare standards
- Can be lifted 3 ways – hook lift, fork lift, crane lift
- Can separate hook lift section from main cabin structure if not required
- Low-level lifting eyes avoid ‘Working at Height’ issues
- Triangulated stainless steel chain guard protects cabin from damage from lifting chains/straps
- Corner chain guides for safe lifting (statics only)
Forklift pockets - ISO Twist Lock castings for safe transport
- Magnetic door stays
- Anti-vandal doors with 3-bolt locking system and anti-prise strip
- Keyholes positioned to prevent lock chiselling
- High-security windows with locking steel shutters and toughened glass panes
- ‘Chip Guard’ coating prior to painting
- 2-pac paint finish in choice of RAL colours
- Gold Standard Certification ensures all electrics comply with current legislation BS 7671 18th Edition
- External socket so unit can be powered by external electricity supply
- Energy efficient 12V LED lighting powered by battery
- Brilliant white GRP walls with easy to maintain wipe-down finish
- Extremely hard wearing, easy to clean Polyflor vinyl floor covering
Canteen
- Comfortable canteen seating with tables and chairs for up to 18 people
- High security impact-resistant skylights provide natural light
- 12V USB charging points
- 230v 3-pin plug sockets
- Microwave
- Kettle
- Instant hot wash with stainless steel forearm sink
- Soap and towel dispenser
- Clean and waste water containers with 25ltr capacity
- Drinking water container with 25ltr capacity
- Drinking cup dispenser
- Kitchen area with stainless steel worktops
- Internal power isolator switch for ease of use and to prevent unplanned generator start, deep battery discharge and theft
- Generator control panel inside cabin (not Eco Ultimate spec as generator is controlled automatically by ILMS)
- Low level plinth heater
- CO monitor alarm
- Consumer unit with RCD and MCB protection
- Whiteboard with cork pinboard section
Office
- Desk Space for three people
- Three office chairs supplied
- Whiteboard with cork pinboard section
- CO monitor alarm
- 12V USB charging points
- 230v 3-pin plug sockets
- Wall-mounted fan heater
Changing / drying room
- Bench seating with space under to store footwear, bags etc
- Coat hooks
- Wall-mounted fan heater
Toilet
- Separate toilet cubicle with external door
- Recirculating Chemical Toilet
- Impact resistant polycarbonate fixed-pane skylights
- Emergency external lock release mechanism
- Instant hot water hand wash and forearm sink
- Soap and hand towel dispenser
- Wall mirror
- 12v PIR-sensor controlled LED lighting
- Self-closing door
Generator / drying room
- Generator room also can be used to dry clothing
- Redbox generator with 1000 hour service intervals – 4 x longer than industry standard
- Wall mounted fan heater
- CO monitor alarm
- Coat hooks
- 12v PIR-sensor controlled LED lighting
Tech Spec
| Attribute | Measurement |
|---|---|
| Total Length | 9980mm (inc. hook lift) |
| Cabin Length | 9750mm |
| Total Width | 2950mm (over lifting lugs) |
| Cabin Width | 2750mm |
| Total Height | 2740mm (inc. hook lift) |
| Cabin Height | 2550mm |
| Internal Height | 1990mm |
| Internal Width | 2610mm |
| Net Weight | 5646kg |
| Fuel Tank | 58L |
| Drinking Water | 20L |
Chemical Toilet Version
| Fresh Water | 25L (Canteen) |
| Waste Water | 25L |
| Fresh Water | 65L (Toilet) |
| Toilet Waste | 225L |
Fresh Water Toilet Version
| Fresh Water | 140L |
| Water/Toilet Waste | 150L |
Optional Upgrades and Features
- Choice of Eco Plus, Eco Hybrid, Eco Ultimate or Solar Eco Hybrid electrical specifications.
- Boss Shadow telemetry monitors cabin location, fuel level information and fault notification and diagnostics. Also theft alarm and remote shutdown of generator. Can include fresh water tank and waste tank level information also if fresh water toilets are installed.
- Stainless steel build with 25 year warranty.
- Fresh water micro-flush toilets.
- Metal toilet pedal upgrade if fresh water toilet specified.
- Waste Management Pro (WM Pro) rain water harvesting and grey water recycling system if fresh water toilet specified.
- 5 year warranty on generator engine and alternator with Eco Ultimate specification.
- Redbox Infinity generator with 2000 hour service intervals – 8 x longer than industry standard.
- 12V Webasto diesel heater. Comes as standard with Eco Hybrid or Eco Ultimate. Optional upgrade on Eco Plus. Runs without generator power.
- Optional wall-mounted open or lockable personal storage compartments in Changing/Drying room
- Instant boiling hot water tap instead of kettle if Eco Ultimate electrical system if specified.
- Solar pack with roof mounted solar panel(s) to offer improved environmental performance and constant trickle charge to the batteries.
- Boss Communication pack with wireless router.
- Boss Entertainment pack including flat screen TV, Bluetooth wireless speakers.
- Optional dispenser configuration – can include sanitiser, moisturiser etc.
- Low power inverted 3-pin sockets to power computers, printers etc. from battery fitted as standard with Eco Hybrid or Eco Ultimate electrical specification.
- Contract a Boss Cabins Annual Safety Inspection – ensure your cabin remains safe and within the law.
