Boss Cabins Deep Green 12 Twin

Perfect for smaller or harder to access sites, this twin toilet 12ft Deep Green packs all the eco-punch of its larger siblings.

TAKE A VIRTUAL TOUR

Build a bespoke cabin

Your Cabin, Your Way

Design and build your cabin online with
our configurator.

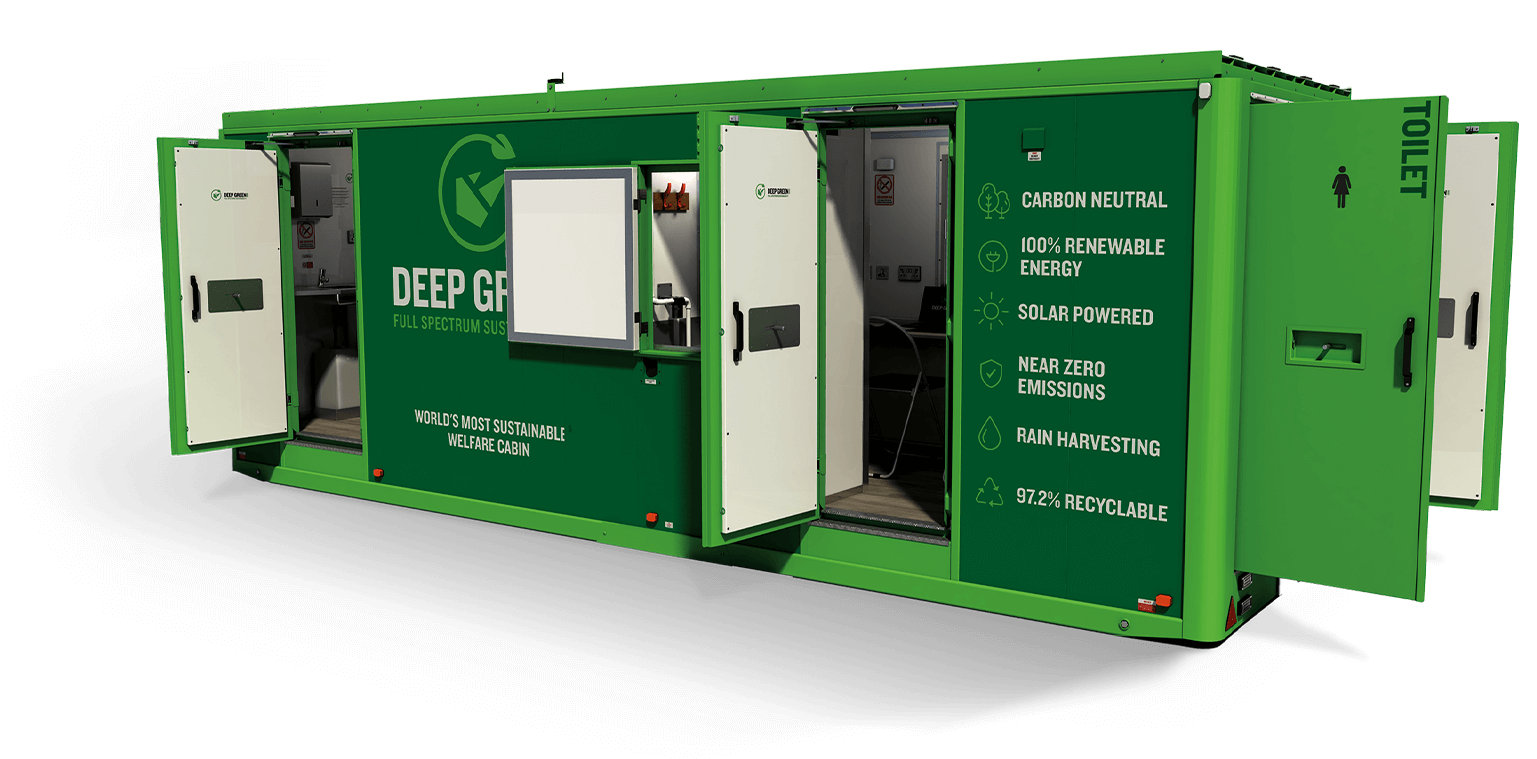

With sustainability and net zero operation increasingly important on UK worksites, we created DEEP GREEN 2030, a welfare range which runs almost entirely from solar power alone with no fuel costs, no on-site emissions and no generator noise.

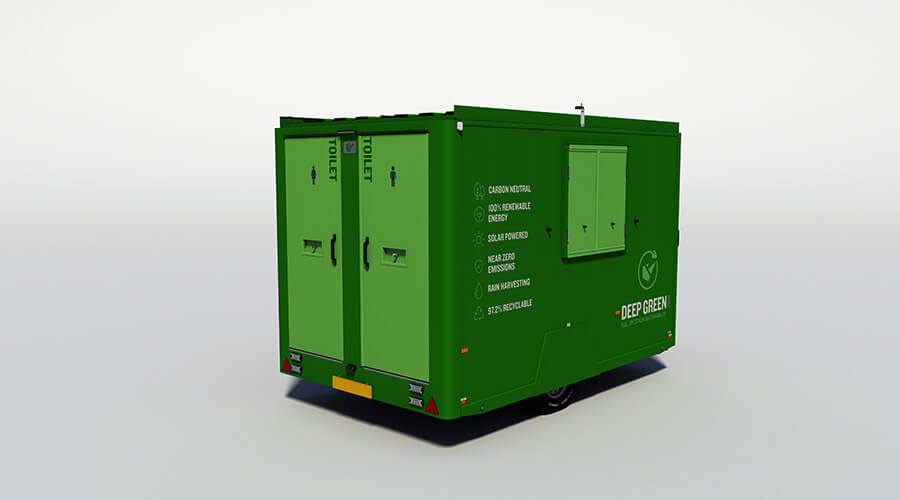

This 12ft self-contained unit provides a compact and convenient welfare solution which combines a fully-equipped Canteen space for up to 7 users with twin female and male fresh water toilets.

Easy to transport, fast to deploy

This road towable welfare unit meets all HSE on-site welfare standards. With a single axle, the unit is safe, easy to transport and extremely manoeuvreable on site. A 4-ram hydraulic deployment system means it is fast to deploy in under a minute.

Solar powered

Power is provided by an array of 8 solar panels on the unit’s roof. The energy harvested is stored in a large lithium ion battery. For most of the year, this is sufficient to power all electrical operations in the cabin. Field data shows that during spring, summer and autumn months, Deep Green units are running 100% from solar alone and even in winter, solar is providing 80-90% of the unit’s energy needs.

Near zero emissions

Due to the use of solar energy backed up with a tiny generator that runs on HVO biofuel, virtually zero on-site CO2 emissions are produced, contributing to a clean, healthy worksite environment and enabling cabins to be used in emission-sensitive areas such as ULEZ as other city centre sites.

Patented generator

If extra power is needed to charge the battery during the darkest winter months or if the cabin is parked somewhere out of direct daylight, a small 3.5kVA RedBox Infinity generator is fitted which will automatically start up and run for a short period to charge the battery. This patented generator only needs servicing every 2000 hours of generator run-time, 8 x less than industry standard.

Rain harvesting & water recycling

A unique patent-pending Waste Management ProTM system harvests rain water from the roof. This water is sterilised and used for hand washing. Grey water from the hand wash is then recycled to flush toilets, reducing the amount of fluid waste going into the tank. This minimises the need both for water refills and waste tank pump outs and can extend toilet service intervals to over 4 weeks.

Remote 24/7 online monitoring

All data on the Deep Green units’ energy production, energy consumption and generator runtime is being monitored and recorded 24/7 so at any point you can know exactly how much carbon/fuel/emissions these units are saving. Perfect for environmental/carbon reporting, giving accountability for sustainability targets.

Effective service planning

Users can remotely access cabin location and tank levels for fuel, fresh water and waste so servicing can be planned precisely avoiding wasted visits or downtime on cabins. Cutting out unnecessary service visits means further financial savings as well as reducing the environmental impact from service vehicles.

Sustainable long-lasting

All Deep Green cabins are built from stainless steel which is 25% stronger than mild steel as well as lasting far longer. Deep Green cabins come with a 25 year anti-corrosion guarantee – giving a x3.6 longer life than mild steel cabins which only have an average useful life of 7-8 years. Cabins are over 97% recyclable at end of life.

Highly specified

Despite being the most sustainable eco-friendly welfare cabins in the market today, Deep Green units offer a more ‘high-end’ than ‘hairshirt’ experience. In fact, they are more highly specified than almost all other welfare available, with luxury finishes such as catering-grade stainless steel worktops, hygienic no-touch low-power hand dryers, an abundance of USBs and plug sockets plus tasteful chrome fittings throughout.

Finance Your Deep Green 12 Twin

From per week*

Get full quote
Download Brochures

Want more information?
Check out our latest brochure.

Download

Submit your details to download.


    How we handle your data

    Details which you provide here will not be shared with anyone outside of Boss Cabins and will be kept in a safe and secure location. You may request your personal data to be removed at any time.

    We may obtain data from carefully selected third parties, including our clients. For more information read our privacy policy.

    Do you need a bespoke layout?

    Talk to us about a custom design for your cabin.

    GET IN TOUCH

    Aftersales & Support

    We work harder after the sale because we understand that you need ongoing maintenance, accident and repairs, and parts when they get damaged.

    Annual Inspection

    When you buy a Boss Cabin, we'll come and service your cabin annually for your peace of mind.

    Accident & Repair Centre

    Fleet of cabins looking tired and need a refurb? Our accident and repair centre is here to help you get your fleet back on hire as quick as possible.

    Deep Green 12 Twin Features

    GENERAL FEATURES

    • Highly functional design with fully-equipped Canteen and Twin F/M Toilets
    • VCA Type Approval under Directive 2007/46/EC
    • Meet all HSE on-site welfare standards
    • Electric hydraulic deployment system with 4 rams – deploys in under a minute
    • Full-steel exterior high-security anti-vandal unit
    • Anti-vandal doors with 3-bolt locking system and anti-prise strip
    • Keyholes positioned to prevent lock chiselling
    • High-security windows with locking steel shutters and toughened glass panes
    • Exclusive magnetic door stays avoid damage and accidents
    • PIR-sensor exterior lights create a safer environment when dark
    • 2-pac paint finish in choice of RAL colours
    • Ram guards supplied to allow safe working practices in the field
    • Gold Standard Certification – all electrics comply with current legislation BS 7671 18th Edition
    • Anti-vandal tow hitch flap cover with anti-prise bear-claw lock
    • Choice of ball hitch or pin & eye tow hitch
    • Single axle design – easy to transport and manoeuvre
    • Detachable wheel arch for quick and easy wheel change
    • Low-level lifting eyes avoid ‘Working at Height’ issues
    • Stainless steel chain guard protects cabin from damage from lifting chains/straps
    • External input socket so unit can be powered by external electricity supply
    • Brilliant white GRP walls with easy to maintain wipe-down finish.
    • Hard wearing, easy to clean Polyflor vinyl floor covering
    • Layout can be customised for clients’ requirement

    CANTEEN FEATURES

    • Comfortable bench seating with back rests for up to 7 people
    • 10 x 12V USB charging points
    • Chrome-fronted low-power 230V 3-pin double power socket
    • Microwave and kettle
    • Instant hot wash with stainless steel sink
    • Hygienic and hard-wearing stainless steel work surface
    • Chrome soap and towel dispensers
    • Rounded-corner table to allow maximum manoeuvrability inside cabin
    • Drinking water container with 20ltr capacity
    • Internal power isolator switch for ease of use and to prevent unplanned generator start and theft
    • Generator control panel inside Canteen
    • CO monitor alarm
    • Consumer unit with RCD and MCB protection
    • Whiteboard with cork pinboard section

    TOILET FEATURES

    • Twin female/male toilet cubicles – convenient and cater for onsite diversity
    • Micro-flush fresh water toilets use minimal water
    • Odourless waterless urinal
    • Stainless steel forearm sinks with instant hot water hand wash
    • Chrome no-touch low power electric air blown hand dryer – hygienic and convenient
    • Chrome soap dispenser and toilet roll holder
    • Wall mirror
    • Coat hooks
    • Emergency external lock release mechanism
    • Self-closing doors

    Tech Spec

    AttributeMeasurement
    Unit Length3650 mm
    Unit Width2300 mm
    Unit Height2630 mm
    Towing Length4775 mm
    Towing Height2900 mm
    Internal Height1990 mm
    Internal Width2130 mm
    Net Weight2270 kg
    Fresh Water Tank159 litres
    Waste Tank209 litres
    Fuel Tank56 litres

    DEEP GREEN ECO FEATURES

    • 8 x 150W solar panel array harvests free renewable energy
    • Ultra efficient electrical system cuts energy wastage
    • Safe long-lasting 5.12kWh Lithium Ion battery stores energy
    • SOLARTrackTM – 24/7 monitoring of energy production and usage
    • Ability to monitor data and report gives accountability for sustainability targets
    • 24/7 remote access to fuel, water and waste levels for precise service planning
    • Built in stainless steel with 25 year anti-corrosion warranty
    • Patented InfinityTM 3.5kVA Stage 5 back-up generator has 2000h service intervals. 8 x longer than standard
    • Patent-pending Waste Management ProTM system harvests rainwater and recycles grey water
    • Energy efficient 12V LED lighting powered by battery. PIR-sensor controlled so only used when necessary
    • Exterior lights are controlled by solar sensor as well as PIR-sensor so only come on when dark
    • 12V air-blown diesel heating system uses 0.25l of fuel per hour
    • Back-up generator and heating system use HVO biofuel cutting net carbon emissions by 90%

    OPTIONAL UPGRADES

    • Upgrade to a smaller 2.3kVA Infinity generator with built-in Diesel Particulate filter to scrub exhaust emissions
    • Internet connectivity via an on-board Wi-Fi router
    • Anti-vandal cowl tow hitch cover which covers entire draw bar
    • Option of 8 x storage compartments in Canteen

    All features are subject to change at any time at the discretion of the manufacturer. Check the specification when placing an order.
