DEEP GREEN CANTEEN OFFICE 20 TWIN

With sustainability and net zero operations increasingly important on UK worksites, we created our DEEP GREEN 2030 eco welfare range which runs almost all the time entirely from solar power alone with no fuel costs, no on-site emissions, no generator noise and hugely reduced servicing costs.

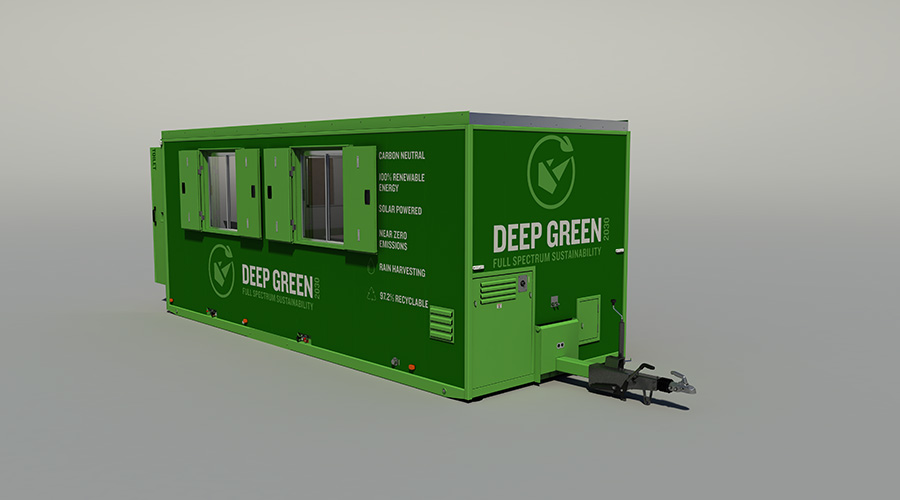

This 20ft eco welfare unit provides an extremely flexible and functional workspace catering for a variety of uses in one easy-to-tow unit. As well as a fully-equipped Canteen for up to 13 users and a separate quiet Office for one person, this welfare cabin has not one but two fresh water toilet cubicles catering for a diversity of users on site.

Easy to transport, fast to deploy

This large-capacity road towable welfare unit meets all HSE on-site welfare standards. With a twin axle build, the unit is safe and easy to transport and a 4-ram hydraulic deployment system means it is fast to deploy in under a minute.

Solar powered

Power is provided by an array of 12 solar panels on the unit’s roof with energy stored in a large lithium ion battery. For most of the year, this is sufficient to power all electrical operations in the cabin. Field data shows that during spring, summer and autumn months, Deep Green solar welfare units are running 100% from solar alone and even in winter, solar is providing 80-90% of the unit’s energy needs.

Near zero emissions

Due to the use of solar energy backed up with a tiny generator that runs on HVO biofuel, virtually zero on-site CO2 emissions are produced, contributing to a clean, healthy worksite environment and enabling cabins to be used in emission-sensitive areas such as ULEZ and other city centre sites.

Patented generator

If extra power is needed to charge the battery during the darkest winter months or if the cabin is parked somewhere out of direct daylight, a small 3.5kVA RedBox Infinity generator is fitted which will automatically start up and run for a short period to charge the battery. This patented generator only needs servicing every 2000 hours of generator run-time, 8 x less than industry standard.

Rain harvesting & water recycling

A unique patented Waste Management ProTM system harvests rain water from the roof. This water is sterilised and used for hand washing. Grey water from the hand wash is then recycled to flush toilets, reducing the amount of fluid waste going into the tank. This minimises the need both for water refills and waste tank pump outs and extends toilet service intervals up to 3 weeks.

Remote 24/7 online monitoring

All data on the Deep Green units’ energy production, energy consumption and generator runtime is being monitored and recorded 24/7 so at any point you can know exactly how much carbon/fuel/emissions these units are saving. Perfect for environmental/carbon reporting, giving accountability for sustainability targets.

Effective service planning

In addition, users can remotely access cabin location and tank levels for fuel, fresh water and waste so servicing can be planned precisely avoiding wasted visits or downtime on cabins. Cutting out unnecessary service visits means further financial savings as well as reducing the environmental impact from service vehicles.

Sustainable long-lasting

All Deep Green cabins are built from stainless steel which is 25% stronger than mild steel as well as lasting far longer. Deep Green cabins come with a 25 year anti-corrosion guarantee – giving a x3.6 longer life than mild steel cabins which only have an average useful life of 7-8 years. Cabins are over 97% recyclable at end of life.

Highly specified

Despite being the most sustainable eco-friendly welfare cabins in the market today, Deep Green units offer a more ‘high-end’ than ‘hairshirt’ experience. In fact, they are more highly specified than almost all other welfare available, with luxury finishes such as catering-grade stainless steel worktops, hygienic no-touch low-power hand dryers, an abundance of USBs and plug sockets plus tasteful chrome fittings throughout.
